CTF Writeup - Space Maze (1337up Live 2024)

Overview

CTF Name: 1337up Live 2024
Date: Fri, 15 Nov. 2024, 18:59 ICT — Sun, 17 Nov. 2024, 06:59 ICT
Challenge Name: Space Maze
Challenge Points: 500
Solvers: 3

Description:
Lost in a maze among the stars, you must find the exit before time runs out. Think fast, move faster, and discover what secrets the maze holds. Good luck!

Preface

This is my very first writeup! I hope this serves as a decent guide, and I’d love feedback on how to improve it. Note: Since the CTF servers closed after the event, I couldn’t include many image. So, please use your imagination!

Given Files

A ZIP file containing a Unity game for Windows.

Solution

1. Take a Look

After extracting the files, I quickly recognized this as a Unity game. Using Il2CppDumper, I checked the header file Fun With Spikes_Data/il2cpp_data/Metadata/global-metadata.dat.

I noticed the hex sequence AF 1B B1 FA 1F 00 00 00.
1F 00 00 00 indicates version 31.
So, I used Il2CppDumper version 6.7.46, which supports Unity version 31.

Files used for dumping:

global-metadata.dat
GameAssembly.dll

Meanwhile, I played the game. It’s a maze where you collect scattered portals to gain points. Each time you touch a portal, you’re teleported back to the spawn point. The maze expands after each wave, and you get 5 minutes per wave. Naturally, I thought, why not hack this to teleport myself?

2. Look Closer

To make a teleport hack, I needed two things:

Player coordinates.
Portal coordinates.

I loaded the dumped DLLs into dnSpy to investigate further.

2.1 Teleportation Magic

Finding player coordinates was straightforward. In the Player class, which inherits from Component, I found an Update() method. This led me to:

Component$$getTransform
Transform$$setPosition

The Player class has a field form NetworkBehaviour:

private bool <IsLocalPlayer>k__BackingField; // 0x1C

This is super useful to distinguish my player from others because Unity tends to update all players in the same function. And no, I don’t want to mess with other players—too chaotic. 😂

Using Frida, I hooked into the relevant functions and wrote the following script to teleport myself randomly. onLeave will call after the hook function and onenter will call before the hook function. I have to call in onLeave because in the update function there is code to update your coordinates. I don’t want to teleport to the portal and then be teleported back to the same place lol. args[0] is the function’s this pointer.

function waitForModule(moduleName, callback) {
    var interval = setInterval(function () {
        var baseAddr = Module.findBaseAddress(moduleName);
        if (baseAddr) {
            clearInterval(interval);
            console.log(moduleName + ' loaded at: ' + baseAddr);
            callback(baseAddr);
        }
    }, 100);
}

waitForModule('GameAssembly.dll', function (baseAddr) {
    var Player$$update = baseAddr.add(0xDF8780);
    var Component$$getTransform = baseAddr.add(0x69CE60);
    var Transform$$setPosition = baseAddr.add(0x7E63F0);

    Interceptor.attach(Player$$update, {
        onEnter: function (args) {
            this.playerInstance = args[0];
        },
        onLeave: function (retval) {
            var setPosition = new NativeFunction(Transform$$setPosition, 'void', ['pointer', 'pointer']);
            var vectorMemory = Memory.alloc(12);
            vectorMemory.writeFloat(-11);
            vectorMemory.add(4).writeFloat(-3);
            vectorMemory.add(8).writeFloat(4);
            setPosition(this.playerInstance, vectorMemory);
        }
    });
});

Result:

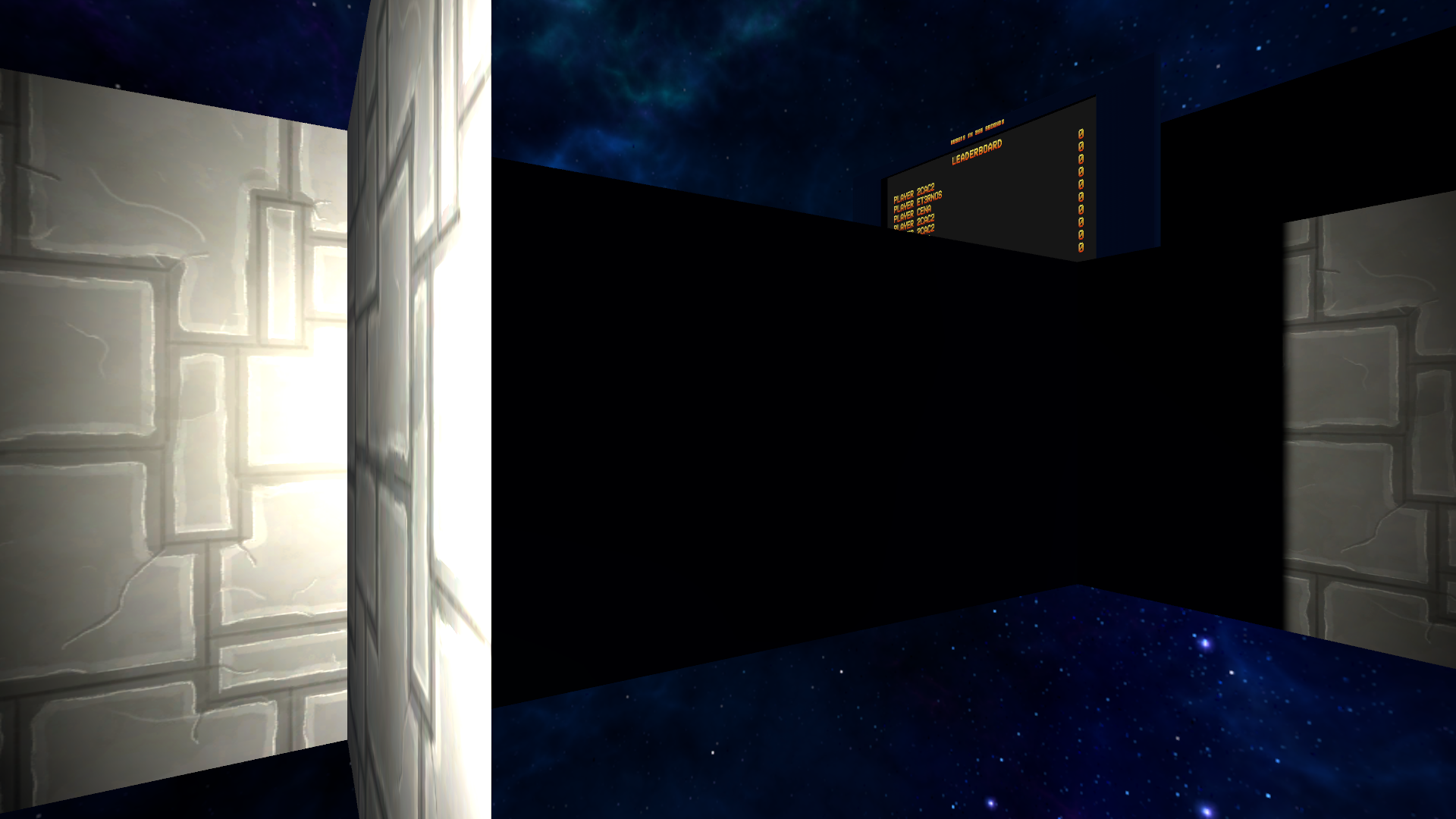

I teleported… right into a wall. Well, at least teleportation works. Baby steps. fail1

2.2 Finding the Portal Coordinates

Searching for “portal,” I found a field in the MazeGenerator class:

[FieldOffset(Offset = "0x28")]
public GameObject portal;

However, the coordinates stayed constant (0, 1, 0) no matter how many portals spawned. So, I moved on.

Eventually, I found a method:

[Address(RVA = "0xDF1070", Offset = "0xDEF670", VA = "0x180DF1070")]
private void FacePlayer(GameObject portalObj)

Hooking this function and printing the coordinates gave me promising results:

var MazeGenerator$$facePlayer = baseAddr.add(0xDF1070);
var GameObject$$getTransform = baseAddr.add(0x69E610);
var Transform$$getPosition = baseAddr.add(0x7E5C70);

Interceptor.attach(MazeGenerator$$facePlayer, {
    onEnter: function (args) {
        this.portalInstance = args[1];
    },
    onLeave: function (retval) {
        var getTransform = new NativeFunction(GameObject$$getTransform, 'pointer', ['pointer']);
        var portalTransform = getTransform(this.portalInstance);

        if (portalTransform.isNull() || this.portalInstance.isNull()) {
            console.log('Invalid transform for portal instance.');
            return;
        }

        var getPosition = new NativeFunction(Transform$$getPosition, 'pointer', ['pointer', 'pointer']);
        var vectorMemory = Memory.alloc(12);
        getPosition(vectorMemory, portalTransform);
        console.log('Portal position: ' + vectorMemory.readFloat() + ', ' + vectorMemory.add(4).readFloat() + ', ' + vectorMemory.add(8).readFloat());
    }
});

Gotcha! This gave me the portal coordinates.

2.3 Putting It All Together

Combining everything, I noticed old portal coordinates persisted even after touching them. To avoid overlapping portals, I used two lists: portalList and usedPortalList (Don’t ask why I used two arrays instead of a queue… it just works). I added a 5-second delay between teleports and offset the Y-coordinate slightly to “touch grass” (portals are higher than the player).

function waitForModule(moduleName: any, callback: any) {
    var interval = setInterval(function () {
        var baseAddr = Module.findBaseAddress(moduleName);
        if (baseAddr) {
            clearInterval(interval);
            console.log(moduleName + ' loaded at: ' + baseAddr);
            callback(baseAddr);
        }
    }, 100);
}

waitForModule('GameAssembly.dll', function (baseAddr: any) {
    var Player$$update = baseAddr.add(0xDF8780);
    var MazeGenerator$$facePlayer = baseAddr.add(0xDF1070);
    var Component$$getTransform = baseAddr.add(0x69CE60);
    var GameObject$$getTransform = baseAddr.add(0x69E610);
    var Transform$$getPosition = baseAddr.add(0x7E5C70);
    var Transform$$setPosition = baseAddr.add(0x7E63F0);

    var portalList: any = [];
    var usedPortalList: any = [];

    var lastUpdateTime = (new Date()).getTime();
    var selectedPortal: any = null;

    console.log('Hooking Update at: ' + Player$$update);

    Interceptor.attach(Player$$update, {
        onEnter: function (args) {
            this.playerInstance = args[0];
        },
        onLeave: function (retval) {
            try {
                if (this.playerInstance.isNull()) {
                    console.log('Invalid player instance pointer.');
                    return;
                }

                var Player$$isLocalPlayerOffset = 0x1C;
                var isLocalPlayer = this.playerInstance.add(Player$$isLocalPlayerOffset).readU8();
                var currentTime = (new Date()).getTime();
                if (isLocalPlayer !== 0 && currentTime - lastUpdateTime > 5000) {
                    lastUpdateTime = currentTime;

                    var getTransform = new NativeFunction(Component$$getTransform, 'pointer', ['pointer']);
                    var playerTransform = getTransform(this.playerInstance);

                    if (playerTransform.isNull()) {
                        console.log('Invalid player transform pointer.');
                        return;
                    }
                    for (var i = 0; i < portalList.length; i++) {
                        if (usedPortalList.some((portal: any) => portal.position.x === portalList[i].position.x && portal.position.y === portalList[i].position.y && portal.position.z === portalList[i].position.z)) {
                            continue;
                        }
                        selectedPortal = portalList[i];
                        break;
                    }

                    if (!selectedPortal) {
                        console.log('No available portal.');
                        return;
                    }

                    console.log('Setting player position to portal:', selectedPortal.position.x, selectedPortal.position.y, selectedPortal.position.z);
                    var setPosition = new NativeFunction(Transform$$setPosition, 'void', ['pointer', 'pointer']);
                    var vectorMemory = Memory.alloc(12);
                    vectorMemory.writeFloat(selectedPortal.position.x);
                    vectorMemory.add(4).writeFloat(selectedPortal.position.y - 1);
                    vectorMemory.add(8).writeFloat(selectedPortal.position.z);
                    setPosition(playerTransform, vectorMemory);
                    usedPortalList.push(selectedPortal);
                }
            } catch (err: any) {
                console.error('Error:', err.message);
            }
        }
    });

    Interceptor.attach(MazeGenerator$$facePlayer, {
        onEnter: function (args) {
            this.portalInstance = args[1];
        },
        onLeave: function (retval) {
            var getTransform = new NativeFunction(GameObject$$getTransform, 'pointer', ['pointer']);
            var portalTransform = getTransform(this.portalInstance);

            if (portalTransform.isNull() || this.portalInstance.isNull()) {
                console.log('Invalid transform for portal instance.');
                return;
            }

            var getPosition = new NativeFunction(Transform$$getPosition, 'pointer', ['pointer', 'pointer']);
            var vectorMemory = Memory.alloc(12);
            getPosition(vectorMemory, portalTransform);
            var existingPortal: any = null;
            for (var i = 0; i < portalList.length; i++) {
                if (portalList[i].position.x === vectorMemory.readFloat() && portalList[i].position.y === vectorMemory.add(4).readFloat() && portalList[i].position.z === vectorMemory.add(8).readFloat()) {
                    existingPortal = portalList[i];
                    break;
                }
            }
            if (!existingPortal) {
                portalList.push({
                    address: this.portalInstance,
                    position: { x: vectorMemory.readFloat(), y: vectorMemory.add(4).readFloat(), z: vectorMemory.add(8).readFloat() }
                });
                console.log('New portal added:', vectorMemory.readFloat(), vectorMemory.add(4).readFloat(), vectorMemory.add(8).readFloat());
            }
        }
    });
});

Results

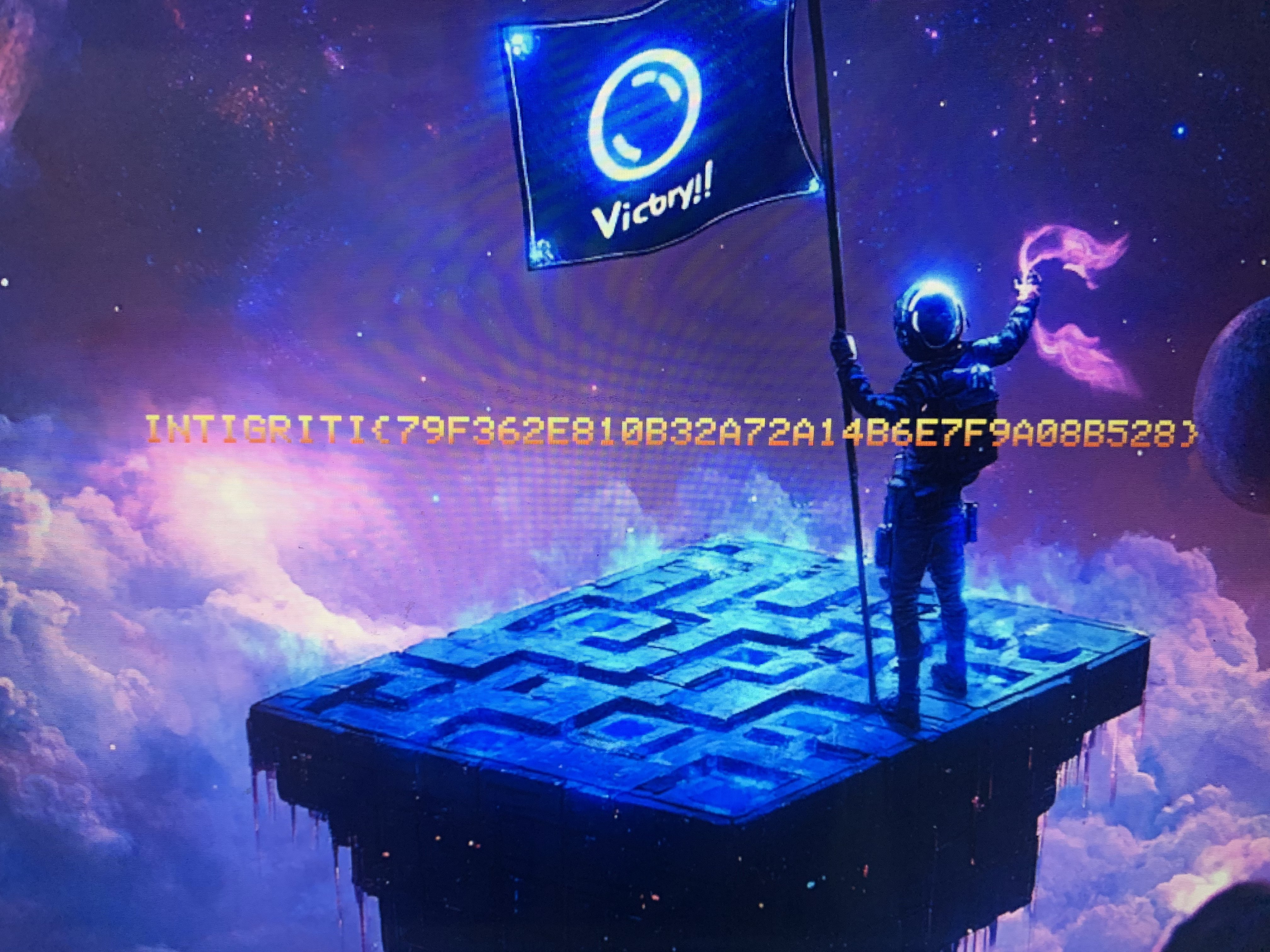

After teleport through 50 portals, here’s the final flag:
Result

Conclusion

This challenge was a blast! While my teleportation journey wasn’t perfect, I learned a ton about Unity games and hooks. Looking forward to more CTFs like this one!
